Description

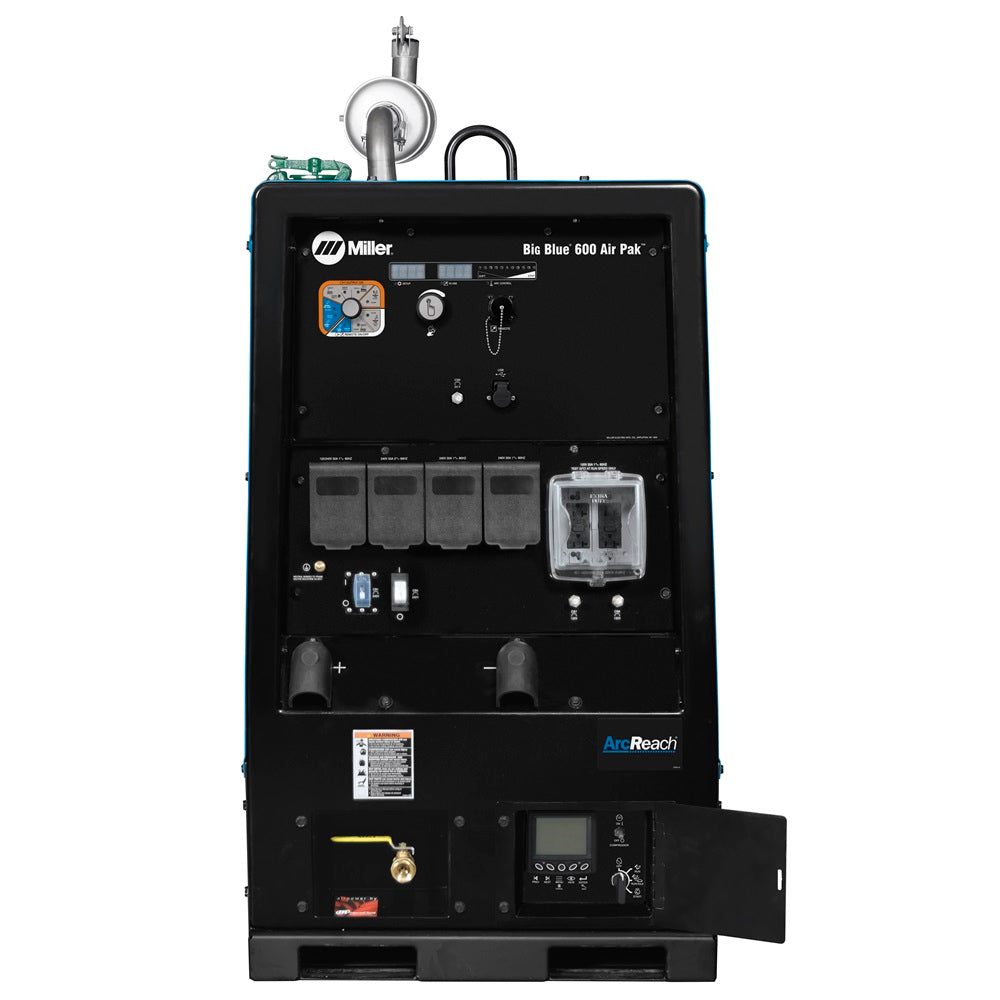

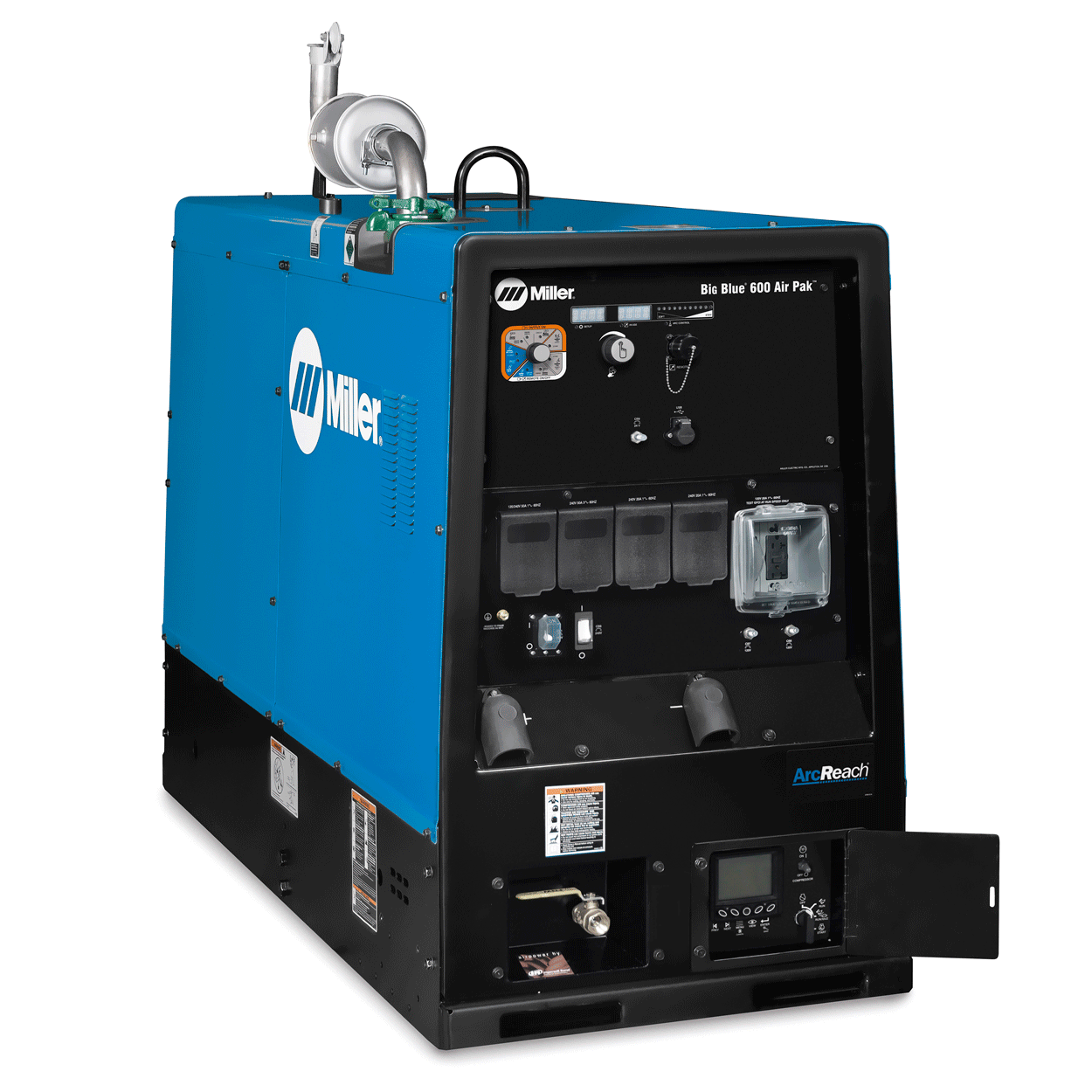

The Big Blue 600 Air Pak is your ultimate partner for field - based work. It offers single - operator power for welding, carbon arc gouging, auxiliary power, or running an air compressor. This machine ensures your worksite equipment stays fully functional all day, boosting your productivity.
Heavy - Duty Low - Speed DEUTZ TD2.9 L4 T4F Industrial Diesel Engine
- It provides the cleanest and greenest diesel power. DEUTZ T4F models use diesel oxidation catalyst (DOC) technology, eliminating exhaust after - treatment maintenance and keeping the air clean.
ArcReach Technology
- Our exclusive ArcReach technology uses existing weld cables to send process adjustment commands back to the welder generator. With it, you can easily control amperage and voltage at your fingertips, not at the power source.
Increased Productivity & Safety
- ArcReach saves you time going back to the power supply to set process, amperage, or voltage. This means more arc - on time and less exposure to slip, trip, and fall hazards.
Air Compressor - Ingersoll Rand
- The ultra - reliable industrial rotary screw air compressor has a 30,000 - hour life expectancy. Its independent on/off control for non - compressed - air applications saves fuel and extends compressor service intervals.
Advanced Features for the Professional Welder
Adaptive Hot Start makes starting stick electrodes a breeze without inclusions.
Enjoy infinite arc control in Stick and Wire modes for better handling of tough - to - weld materials and out - of - position applications.
Lift - Arc TIG starts the arc with minimal electrode/work contamination risk, no high frequency needed.
Fleet Compatibility
It's cross - platform compatible. ArcReach accessories for engine - driven equipment also work on select ArcReach - equipped XMT, Dimension, and PipeWorx 350 FieldPro power sources.
ArcReach - equipped power sources can work with non - ArcReach accessories, but the full ArcReach benefit comes with the ArcReach system.
Specifications
Click the image below to view the full spec sheet
Accessories
Using the Big Blue 600 Air Pak is straightforward. For welding or other power - related tasks, just connect the necessary equipment to the machine. With ArcReach technology, you can adjust amperage and voltage right at your work area. When using the air compressor, use the independent on/off control to save fuel when compressed air isn't needed. As for maintenance, keep an eye on the DEUTZ diesel engine. Although it has a clean - running DOC technology, regular checks are still important. The air compressor has a long 30,000 - hour life expectancy, but proper care will ensure it lasts. When working with the advanced welding features like Adaptive Hot Start, follow the normal electrode - starting procedures. Remember, the machine is cross - platform compatible, so you can use accessories from different sources, but for the best experience, use the ArcReach system. Always follow safety procedures to avoid slip, trip, and fall hazards.
