Description
QuietPulse™
QuietPulse is activated by adjusting the waveshape for DC pulse welding. It creates a slower, more fluid shift between background and peak amperage, minimizing audible noise.
DC TIG Features
It offers an extremely smooth and precise arc for welding exotic materials. With high - speed DC TIG pulse controls, it can pulse 5000 times per second. Pulsing enhances arc stability, reduces heat input and warpage, and can boost travel speeds. Other adjustable parameters are peak amperage, peak time, and background amperage.
Stick Features
Tailored arc control (DIG) lets you modify arc characteristics for specific applications and electrodes. You can achieve a smooth 7018 weld or a stiffer, more penetrating 6010 weld. Hot Start™ adaptive control ensures positive arc starts without sticking.
Blue Lightning™ - High Frequency Arc Starter
It provides more consistent non - contact starts and greater reliability compared to traditional HF arc starters.
Program memory
There are 9 independent program memories to save and maintain your welding parameters.
Cooler Power Supply (CPS)
It has an integrated 120 - volt dedicated receptacle to power the Coolmate™ 3.5. The power switch on the Dynasty also activates the receptacle to prevent torch failure.
Meter Calibration
You can calibrate the meters for certification.
Auto - Line Power Management Technology
It allows any input voltage hookup (208 - 575 V) without manual linking, offering convenience in any job setting and being ideal for unreliable power sources.
Upgradeable and Expandable
The front - panel memory card data port makes it easy to upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest updates.
Cooler - On - Demand™
This feature runs the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants.

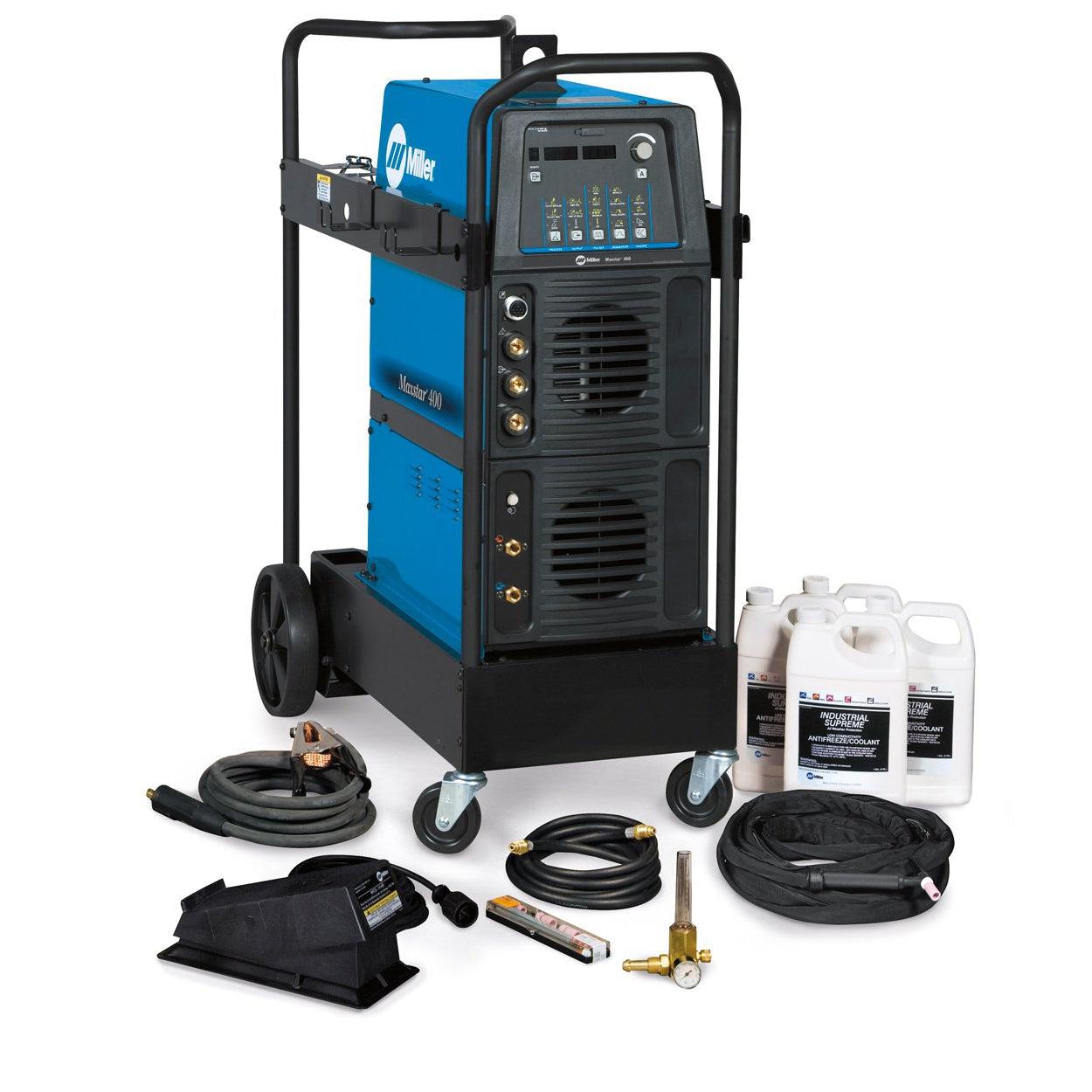

Included with Product

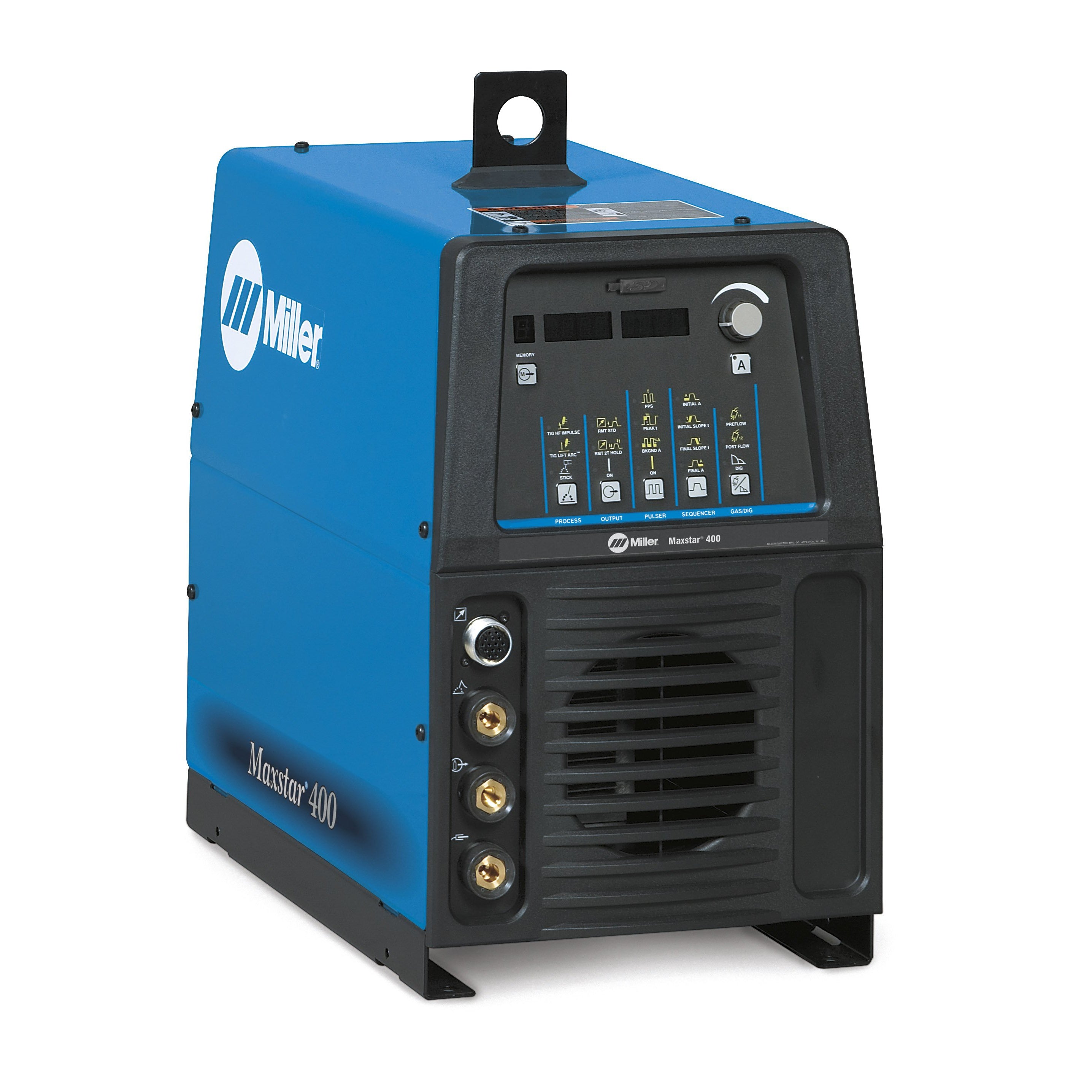

- Maxstar 400 power source
- 8ft (2.4 mm) primary cord
- Two 50mm Dinse - style connectors
- Runner Cart - 300244
- Coolmate 3.5 - 300245
- 4 Gallons of Coolant - 043810
- Weldcraft W - 375 torch kit - 301268
- RFCS - 14HD Remote foot control - 194744
Specifications
Click the image below to view the full spec sheet
Video
Accessories
Using the Miller Maxstar 400 Complete TIG Welder Package is a breeze. First, make sure you've set up all the included components like the power source, cord, and connectors correctly. For DC TIG welding, you can adjust the pulse settings easily. Just play around with the peak amperage, peak time, and background amperage to get the right arc for your exotic materials. When using the stick welding feature, use the DIG control to adapt the arc for different electrodes. And don't worry about starting the arc, the Hot Start™ will do it smoothly. As for the Blue Lightning™ arc starter, it gives you reliable non - contact starts. The program memory is great for saving your favorite settings, so you don't have to keep adjusting. When it comes to the cooler, the Cooler - On - Demand™ will turn on only when required, which is energy - efficient. For power, the Auto - Line technology allows you to connect to different voltages without any manual linking. Maintenance is simple too. Keep the machine clean and free from dust. Check the coolant levels regularly if you're using the Coolmate 3.5. And make sure to visit MillerWelds.com/tigsoftware to keep your software up - to - date. Also, always follow safety guidelines and wear proper protective gear when welding.
