Description

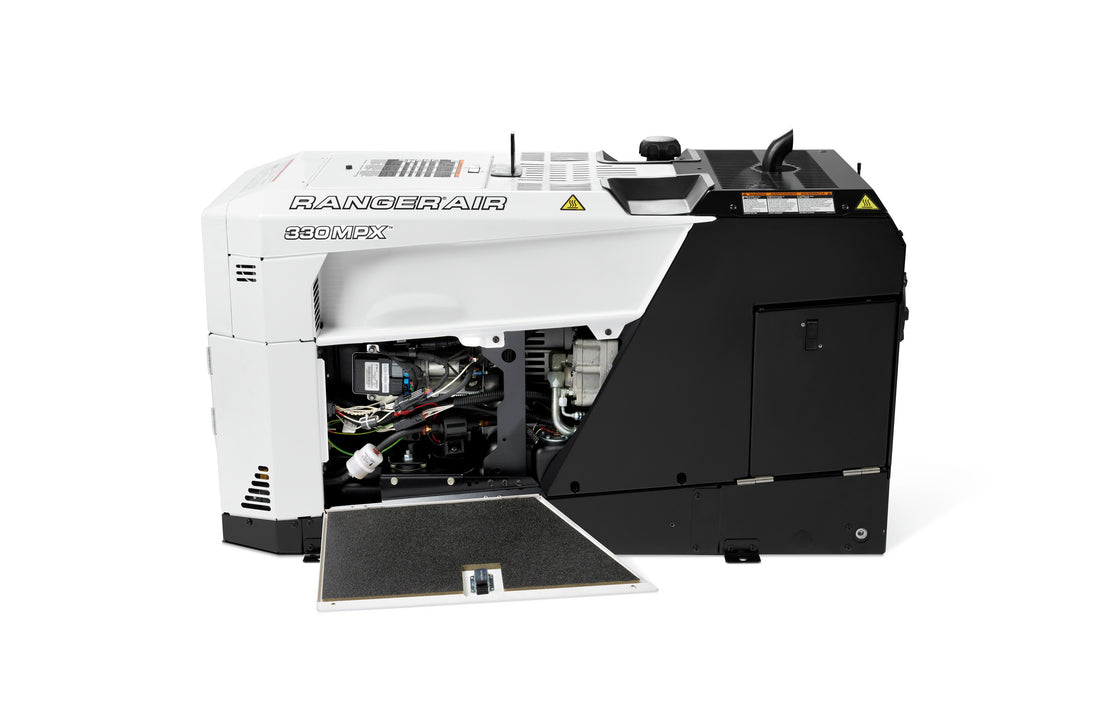

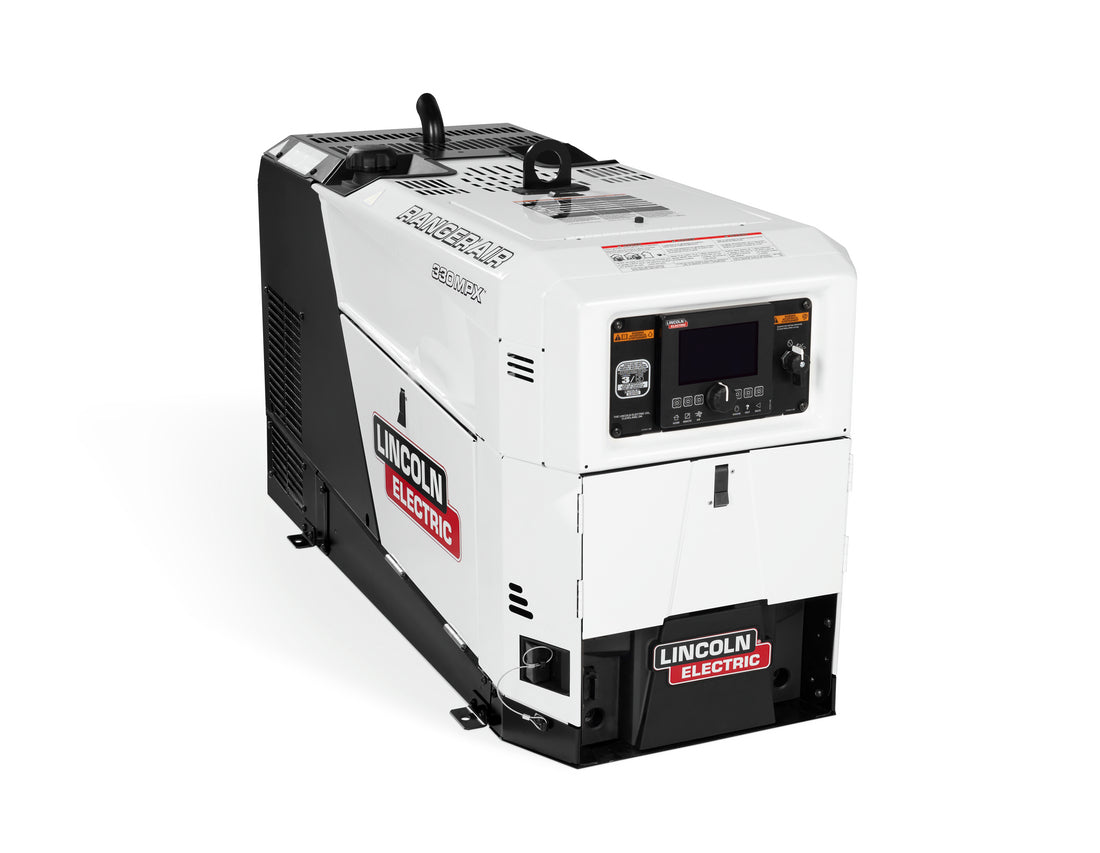

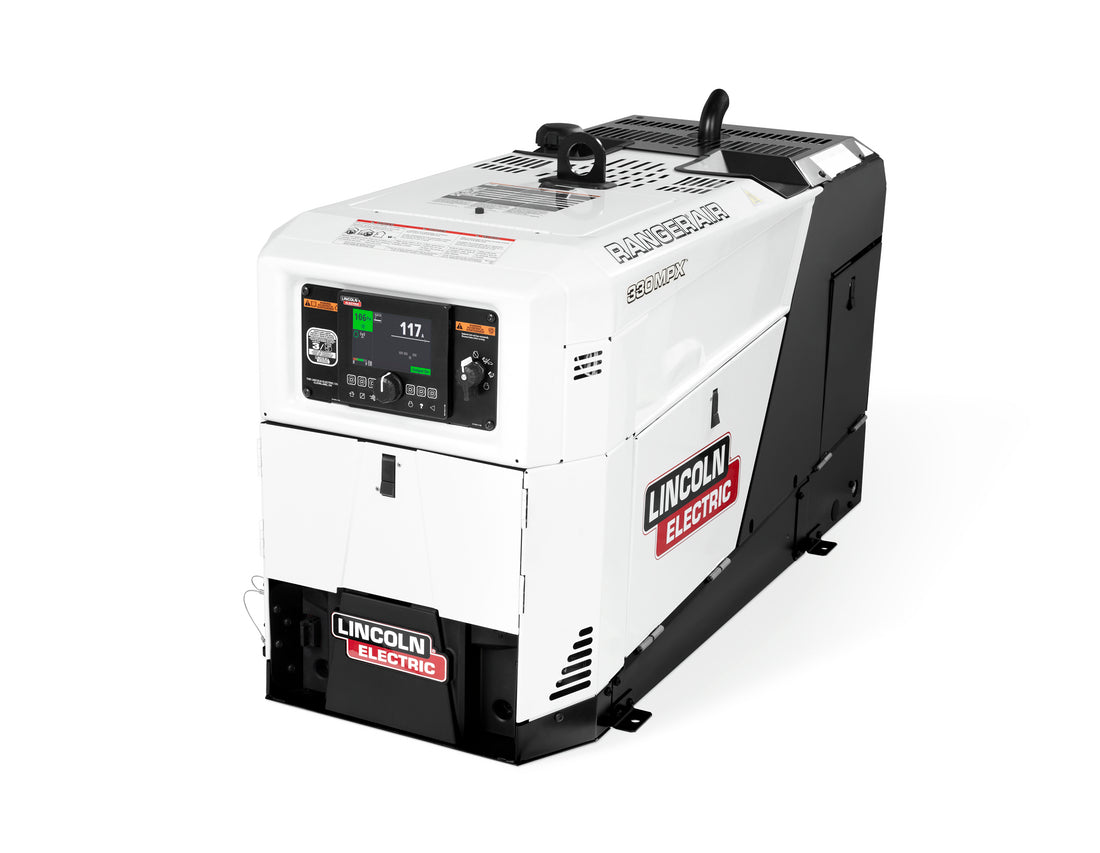

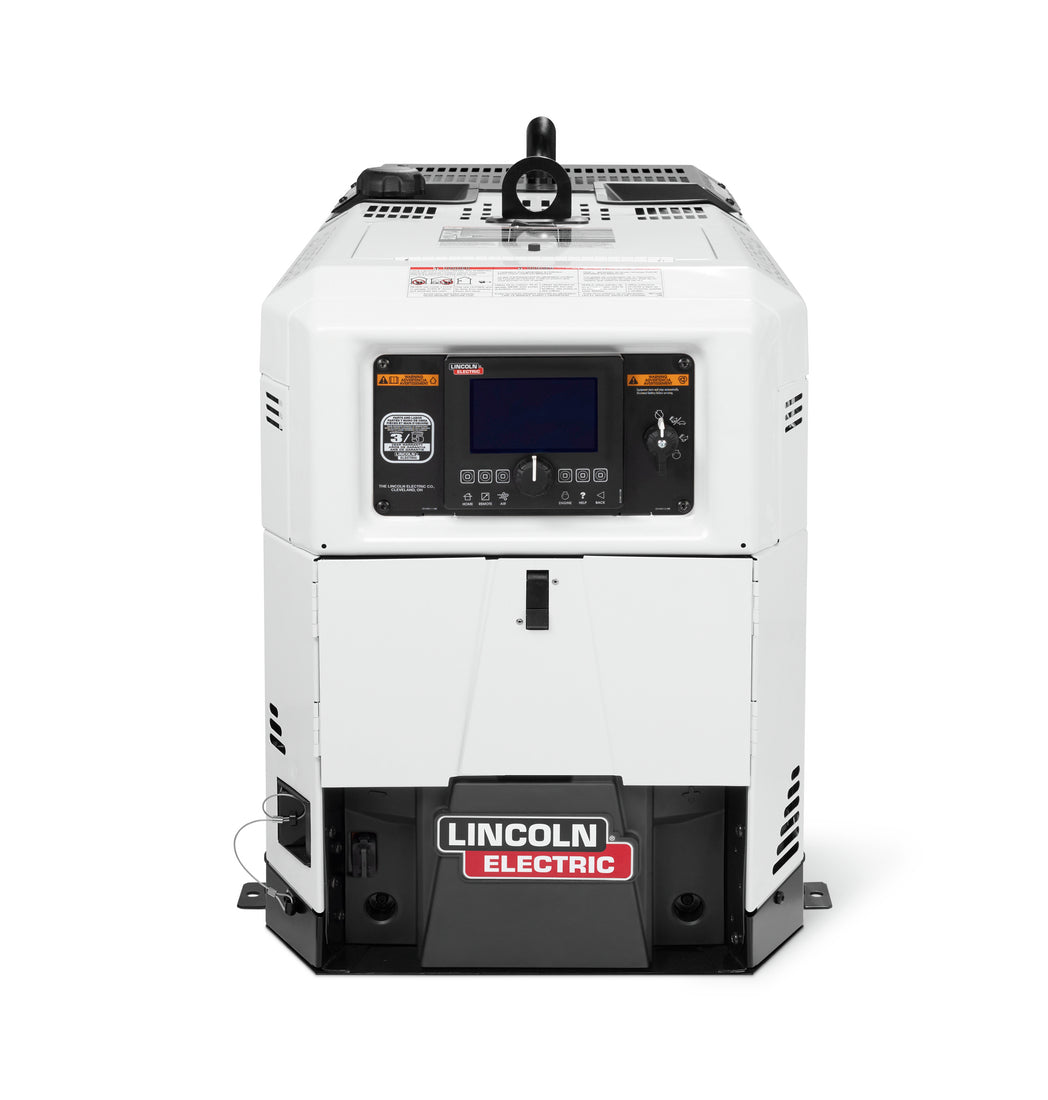

Meet the Ranger 330MPX, a revolutionary welder/generator that's smaller, smarter, and quieter. It leads the pack in job site innovation with a digital user - friendly interface, performance - enhancing technology, and clean AC generator power.
AIR COMPRESSOR
The Vanair® rotary screw air compressor offers instant 40CFM @150 PSI, delivering up to 30% more air power than its competitors. You can power large tools like a 1 - inch impact wrench and inflate tires faster, getting jobs done quicker.
GENERATOR
With 10KW of clean continuous AC generator power, it can handle a wide range of tools. You can power tools while welding, and with less than 5% total harmonic distortion (THD), it's safe for sensitive electronics such as laptops.
BATTERY JUMP ASSIST AND BATTERY CHARGE
It can jump and charge 12V and 24V batteries on the jobsite. Use the 330A for cold cranking assist to start equipment and keep productivity high.
MULTI - PROCESS WELDER
It supports Stick, TIG, MIG, Flux - Cored welding and direct connect spool gun, with a 330A/28V/100% duty cycle for various applications.
ADVANCED WELD MODES
Gouge, pipe, pulsed TIG and pulsed spool gun modes give you more control and flexibility in welding jobs.

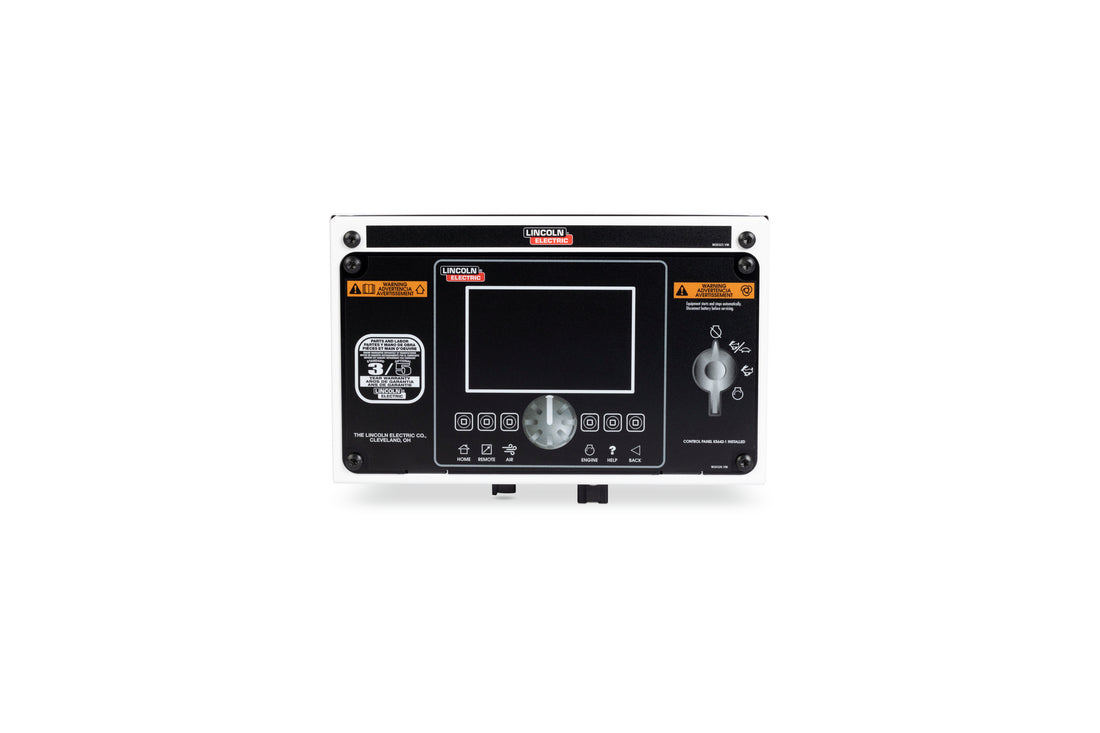

RANGER AIR 330MPX REMOTE PANELS
Improve jobsite safety and efficiency by reducing the need to climb in and out of the truck bed. With easy installation, you have three remote panel options or can use the machine standalone, more flexible than others in its class.
Amperage Output - 330A
Duty Cycle - 100% @ 330A DC CC // 100% @ 312A DC CV
Generator Output - 11,500 w Peak // 10,000 w Continuous
Dimensions - 26' x 20' x 48' (HxWxL)
Machine Weight: 565lbs
Included with Product
Specifications
Click to view the Spec Sheet.
Accessories
Using the Lincoln Ranger Air 330MPX Welder/Generator is a breeze. First, when using the air compressor, connect your tools to it. It can power large tools right away, so you can start your job. For the generator, you can plug in various tools and even sensitive electronics like laptops. When it comes to battery jump - start or charging, just connect it to the 12V or 24V battery on the jobsite. For welding, choose the appropriate process like Stick, TIG, MIG, or Flux - Cored based on your needs. There are also advanced weld modes for more control. If you use the remote panels, install them easily to enhance safety and efficiency. As for maintenance, keep the machine clean. Check the oil regularly for the air compressor and generator parts. Make sure the cables are in good condition. Store it in a dry place when not in use. Always follow the safety instructions in the spec sheet.
