The Precision TIG® 275 is a super - versatile shop welding machine. It's perfect for all TIG or Stick welding maintenance jobs, even when using 5/32 - in. (4.0 mm) stick electrodes. With the patented Micro - Start™ II Technology, it improves starting and arc stability, allowing for more precise welds and crater fills.
**Simplicity, Control, and Wide Range**
- **AC Auto Balance®**: Automatically finds the best mix of cleaning and penetration when welding aluminum. You can also take control and adjust the AC Balance® as you like.
- **Advanced Pulse Control panel (Optional)**: Upgrade to reduce material distortion from too much heat. It also helps control filler metal deposition for a consistent bead look.
- **Wide Output Range**: With an amperage range of 2 to 340 amps, it can handle different material thicknesses.

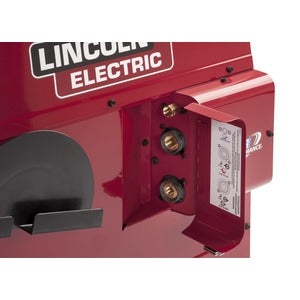

- **Side - mounted Torch Holder**: Makes cable management easy and provides a place for your torch when not in use.
**What's Included**:
- Under - Cooler Cart Water Cooler (K1828 - 1)
- Foot Amptrol™ with 25 ft. (7.6 m) cable assembly (K870)
- Harris® Gas Regulator/Flowmeter and 10 ft. (3.0 m) Hose Kit (3100211)
- PTW - 20 250 amp water cooled TIG torch w/ 25 ft. (7.6 m) cable (K1784 - 4)
- Zippered Torch Cover for TIG Torch with 25’ (7.6m) Cable Assembly (K918 - 2)
- Parts Kit for PTW - 20 Series Torches (KP510)
- 2 Water Hoses (S19558 - 4)
- 15 ft. (4.5 m), 2/0 Work Cable and Clamp (K2150 - 1)
- Adapter for optional PTA - 9 or - 17 Torch (3/8 in.) (S20403 - 4)
**Specifications**: Click the image below to view the full spec sheet.
Using the Lincoln Precision 275 Tig/Stick Welder is easy. First, make sure it's properly connected to a 208V power source. Then, select the right electrode or TIG settings according to your welding job. For aluminum welding, you can use the AC Auto Balance® for the best results, or adjust it manually if you want more control.
When using the optional Advanced Pulse Control panel, it helps reduce heat and gives a nicer bead look. Remember to keep the amperage within the 2 - 340 amps range based on the material thickness.
As for safety, always wear proper welding gear like gloves, a mask, and protective clothing. Don't touch the electrodes or the welding area when the machine is on.
For maintenance, keep the machine clean. Check the cables regularly for any damage. After each use, put the torch in the side - mounted holder to protect it. If you're not using the machine for a long time, store it in a dry place.
