The Lincoln Precision TIG 225 offers the widest operating range in its class, from 5 to 230 amps. With our patented Micro-Start™ II technology, enjoy enhanced starting, excellent arc stability, and more precise welds and crater fills. The 115V receptacles let you power a water cooler or other tools. Ideal for small auto and fabrication shops, as well as vocational training schools.
**Precision Arc Performance**
- Weld with the widest range of 5 - 230 amps in its class.
- The patented Micro-Start II Technology ensures stable low amperage starting, welding, and cratering for both AC and DC.
- It's an excellent stick welder, even with Fleetweld 5P (E6010).
**Simple Controls, Easy to Use**
- The AC Auto-Balance automatically sets the best cleaning and penetration levels for great-looking aluminum welds.
- The built-in TIG pulser helps control heat input in the weld.

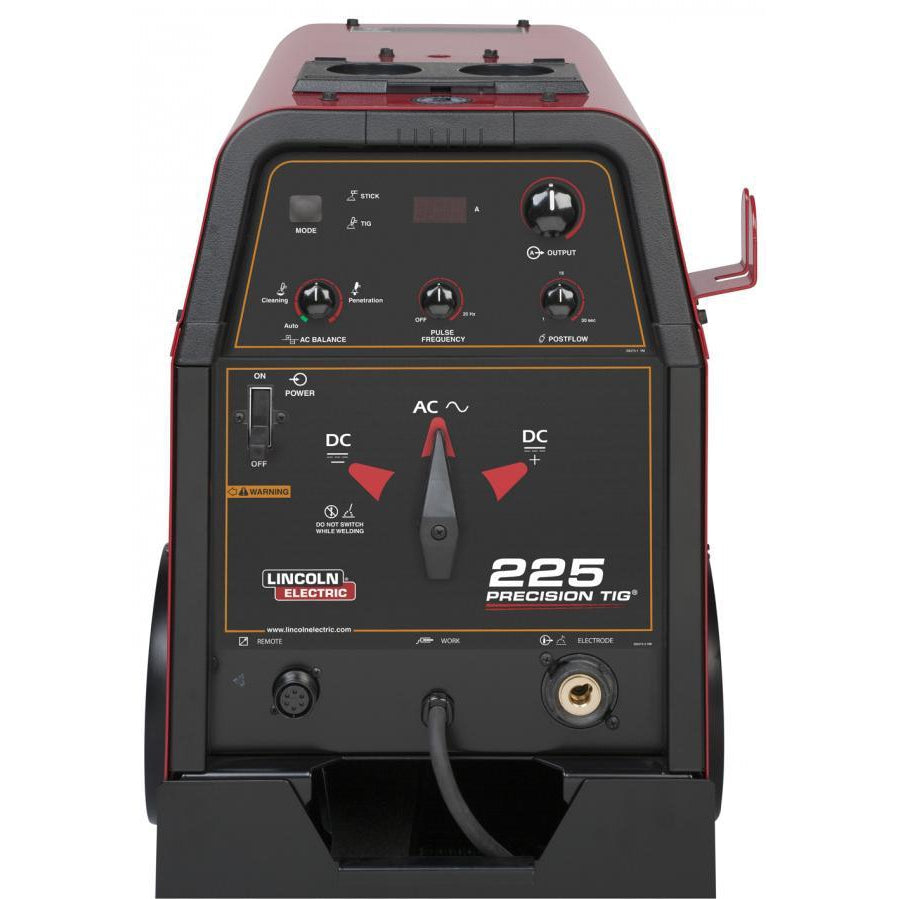

- Features a digital meter and simple, well-spaced controls.
**Professional Features**
- Comes with a standard NEMA 6-50 plug on a 9 ft. (2.7 m) input power cord with a receptacle (208/230 volt models only).
- 115 volt auxiliary power receptacles with 20 amp service (208/230 volt models only; other models have a 6 amp service) to power water coolers or tools.
- A standard torch parts storage compartment and cable hanger keep you organized.
- Ready-Pak models include a Pro-Torch PTA-17 air-cooled 150 amp torch with a new 12.5 ft. (3.8 m) Ultra-Flex cable.
- You can add an optional understorage cart for extra storage and portability.
**Superb Quality**
- The Fan-As-Needed (F.A.N.) system prevents overheating, reduces power consumption, noise, motor wear, and dust in the machine.
- It's CSA C/US certified.
- Backed by a three-year Lincoln warranty on parts and labor.

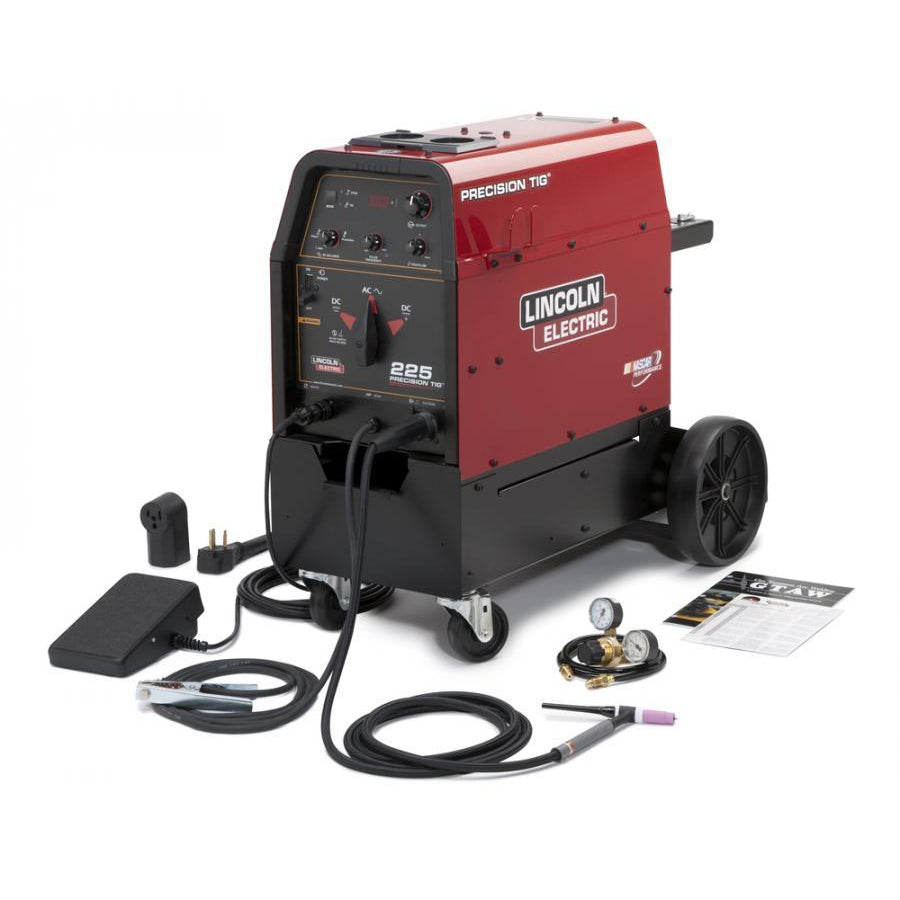

**What's Included**
- Torch Parts Storage Compartment
- Torch Hanger
- 10 ft. (3.0 m) Work Cable & Clamp
- Removable Lift Eye
- 9 ft. (2.7 m) Input Power Cord with NEMA 6-50P Plug
- NEMA 6-50R Receptacle
- TIG Procedure Guide
- GTAW (TIG) Handbook
- PTA-17 150 amp TIG torch with a 12 ft. (3.6 m) Ultra-Flex™ Cable, Twist Mate™ Adapter, 3/32 in. (2.4 mm) 2% Ceriated Tungsten, Collet & Collet Body, 7/16 in. (11.1 mm) Alumina Nozzle
- Long Back Cap
- Gas Regulator with Hose
- Foot Amptrol™ with a 25 ft. (7.6 m) cable assembly (K870)

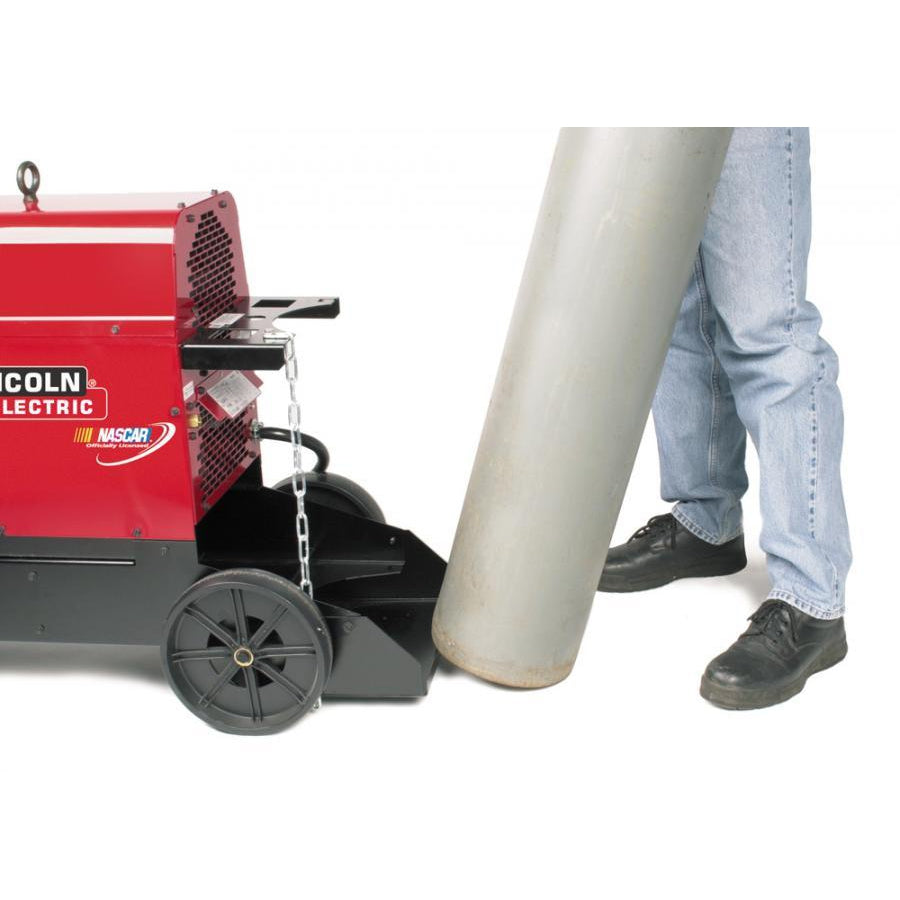

- Understorage Cart (K2348-1)
Using the Lincoln Precision TIG 225 is quite straightforward. First, make sure to connect it to the right power source according to the model's voltage requirements. The 208/230 volt models have a standard NEMA 6 - 50 plug on the 9 ft. input power cord. Once connected, you can start setting up your welding parameters.
For aluminum welding, use the AC Auto - Balance feature. It will automatically set the best levels for cleaning and penetration, so you get nice - looking welds. If you need to control the heat input, turn on the built - in TIG pulser.
When welding, remember that this machine has a wide operating range from 5 to 230 amps. Choose the appropriate amperage based on your project. And with the patented Micro - Start II Technology, starting the weld, especially at low amperages, is very stable.
The 115V receptacles can be used to power a water cooler or other tools. Just check the amp service of your model (20 amp for 208/230 volt models and 6 amp for other models).
Now, for the maintenance part. Thanks to the Fan - As - Needed (F.A.N.) system, the machine is less likely to overheat. But still, keep it in a clean and dry place. Check the cables and connections regularly for any signs of wear or damage. Also, don't forget to store your torch parts in the storage compartment and hang the cable on the hanger to keep things organized.
Finally, note that this machine is CSA C/US certified and comes with a three - year Lincoln warranty on parts and labor. If you have any problems during use, you can refer to the TIG Procedure Guide and GTAW (TIG) Handbook that come with the product.
